3.5 TONNE "Easy Fit' Caravan Automatic Coupler
Kit includes park brake lever and 7/8" mounting stub to fit std tow ball mount.
This by far our most popular model, it replaces just about all other couplings in its weight range, it has a standard bolt hole pattern for ease of fitment. Join the many thousands now singing the praises of this great Aussie invention!
Fully ADR 62/02 tested and compliant.
* A super low height of 125mm at its highest point. This is lowest coupling on the market.
*Capable of over 90 degrees of movement on every axis.

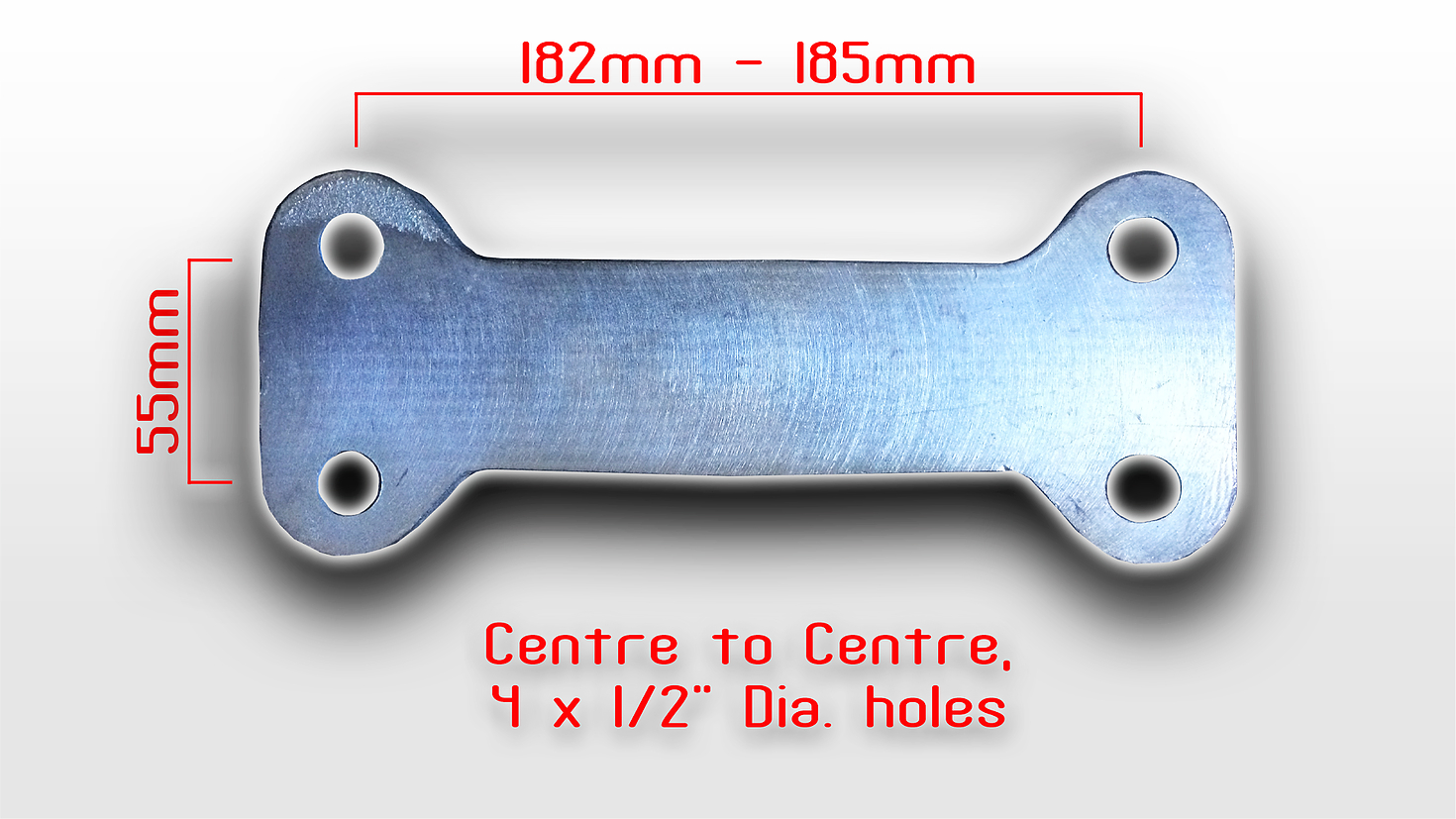

The bolt hole dimensions (centre to centre) are a standard size of 185mm x 55mm, can easily be manipulated slightly due to the holes being elongated.
Choose from the options below for the type of weight distributing head you have. Pictured are all the major types.
If you have a standard tow tongue (no WDH set-up)
Choose option 1
For Weight Distributing Heads, we offer an adaptor pack for an extra $50 that includes an adaptor plate, and a set of WDH bar rollers.
If you have either:
*Hayman Reese WDH
*Eaz Lift WDH
*Quick lift STANDARD offset WDH
Choose Option 2
-
Details

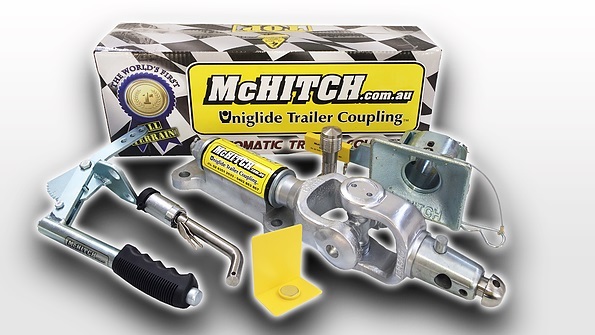

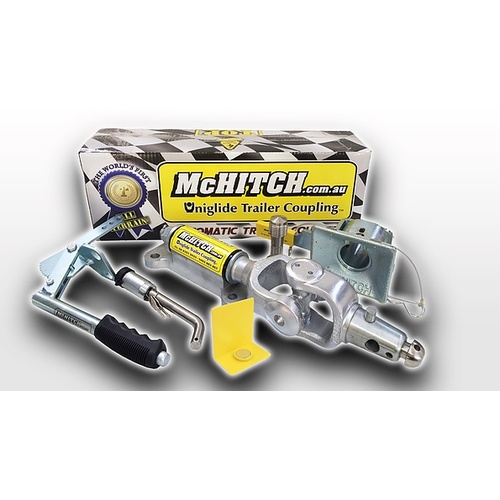

The whole kit includes: Coupler, receiver, laser-cut ratchet handbrake, stainless steel locking hitch pin, yellow magnetic sight marker and fitting instructions. We freight world wide.
(AUEF35K)
SKU |
AUEF35K |
Brand |
McHITCH |
Shipping Weight |
18.0000kg |
Shipping Width |
0.150m |
Shipping Height |
0.200m |
Shipping Length |
0.500m |
Shipping Cubic |
0.015000000m3 |
Unit Of Measure |
ea |
