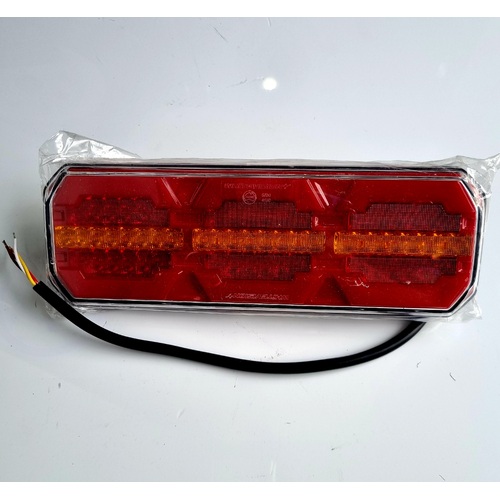

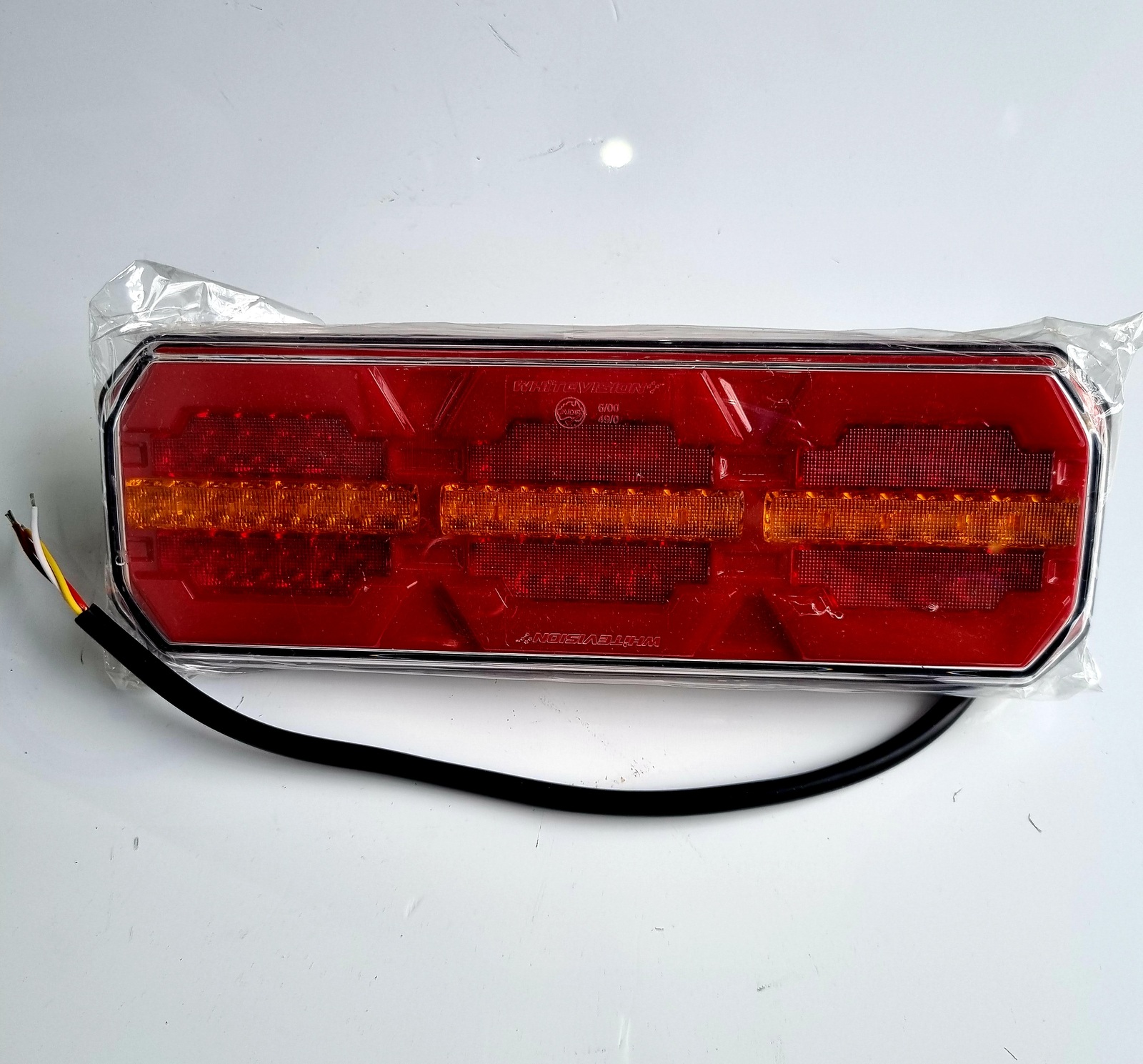

The new CRL285 series is the next generation in multifunction rear combination signal lamps.
Delivering highly styled optics and unique lens design, this series provides a fully compliant rear lighting solution for stop, diffused rear position, sequential indicator, reverse and reflector functions.
Constructed with a polycarbonate lens and heavy duty smart clip base with multiple mounting points, the CRL285 series is designed for high reliability and performance. Suited to OEM and commercial vehicle applications.
Features
• All in one solution for rear lighting
• Highly styled, modern design
• Diffused rear position
• Sequential indicator
• Heavy duty Smart Clip™ base
• Fully ADR compliant
Specifications
Applications | • Trucks • Rigid Bodies • Buses & Coaches • Trailers • Custom Builds |
Functions | Stop / Diffused Rear Position / Running Indicator / Reverse / Reflector |
Voltage | 9-33V DC Varivolt® |
Wattage | Stop:3.5W, Rear Position:2.5W, Indicator:2.6W Reverse:2.3W |
Mount | Front or Rear Stud Mount |
Materials | Polycarbonate Lens & Base |
Environmental | IP67 Hermetically Sealed |
Cable Length | 0.5M Standard |
Dimensions | 283 x 100 x 33mm |
ADR Compliance | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00, Rear Retro Reflector:47/00 |
(LICRL285LED)
SKU | LICRL285LED |
Brand | WHITEVISION |
Shipping Weight | 1.0000kg |
Shipping Width | 0.120m |
Shipping Height | 0.100m |
Shipping Length | 0.120m |
Shipping Cubic | 0.001440000m3 |
Unit Of Measure | ea |
