ADJUSTABLE QUICK RELEASE 400MM

These Corner Steadies were designed by the team at Manutec to be a heavy duty and reliable means to stabilise the trailer or caravan when stationary

Specifications
Large Plastic Coated Aluminium Foot
Zinc Finish
Weld on

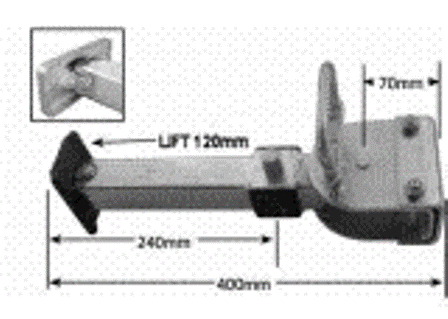

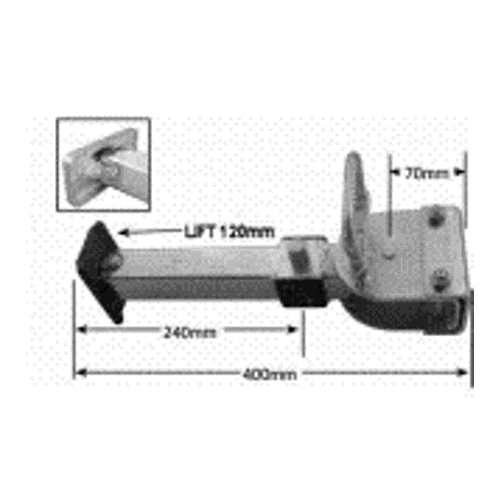

Closed Height 400mm
Lift 120mm

How to Use:
Pull handle to swing leg into lowest lock position (variable) then take up support weight using hex head handle.
Support capacity varies depending on angle of leg and surface grip of foot.
Generally a more vertical position will give greater load capacity but will reduce stability.

Note Corner steadies are not designed to lift the trailer or caravan off the ground.
