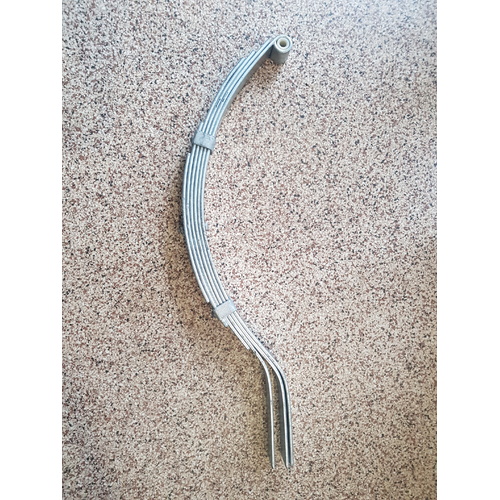

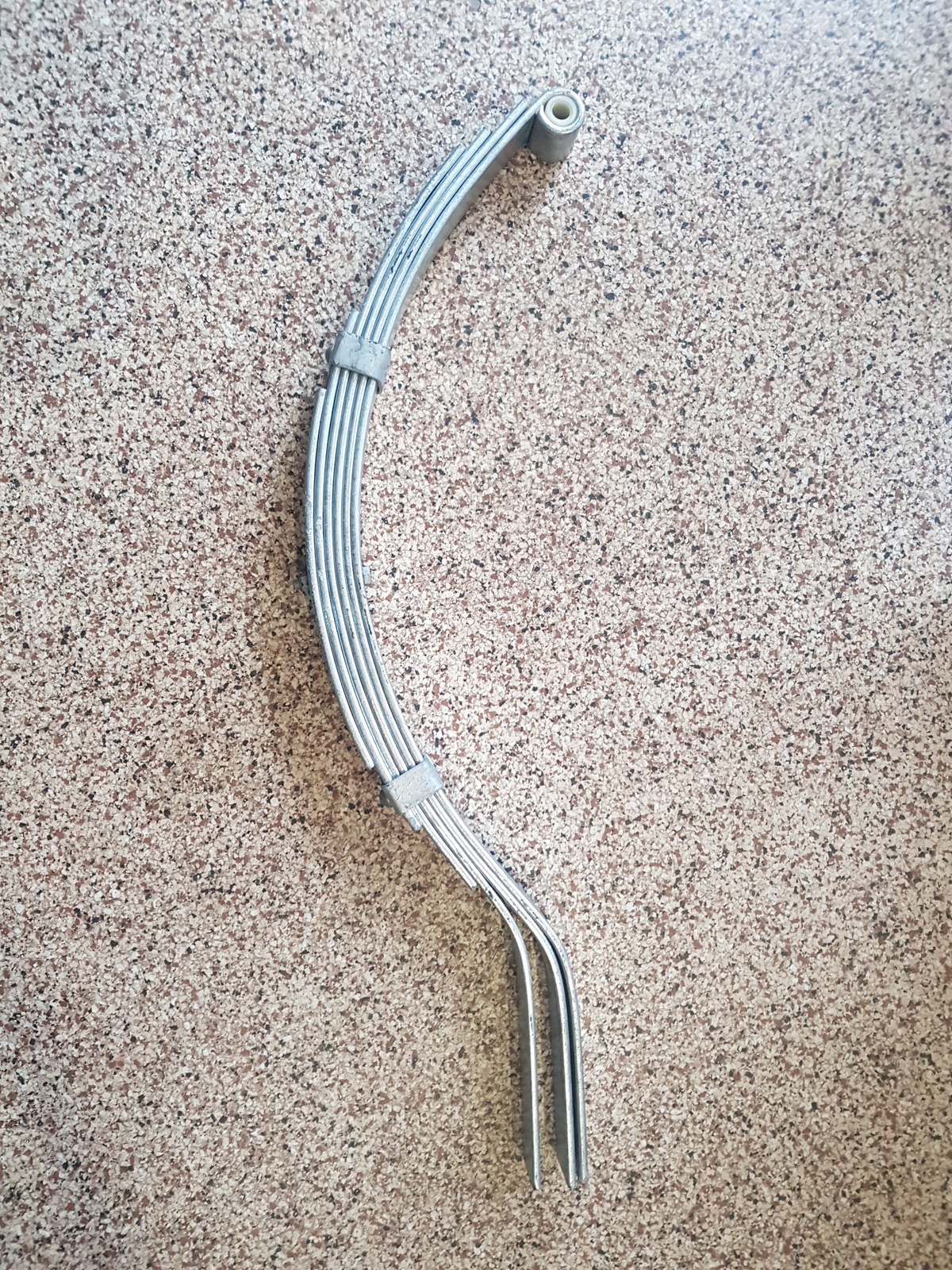

7L EYE & SLIPPER SPRING GALVANISED 6mm Leaf 45mm wide 760mm long 1,500kg Pair

7 Leaf Eye & Slipper Spring anti-rattle style Trailer spring Galvanised 1,500KG rating per pair suitable for box trailers and boat trailers single axle and can be used for tandem non load sharing for box trailers, boat trailers and car trailers etc.

These springs are Galvanised not a Dacromet paint finish

45mm wide x 6mm thick leaf 760mm long centre of eye to the end of slipper measured with no load 1/2" bush can be supplied with 9/16" bush

This term describes a leaf spring style where one end of the spring has the ”traditional” eye and the other end comprises the open leaf or leaves of the spring forming a ”tail” which slides in a ”keeper” or ”hanger” which is welded to the chassis of the trailer. This style of spring is very simple and long wearing, and is available in both black paint and Hot Dipped Galvanised finish in some sizes. Slipper springs can be joined on amulti axle trailer with the tail of the front spring sliding over the eye of the rear spring. Alternatively these springs can be attached to the trailer as individual sets. This style of spring arrangement is a simple and low cost solution to multi-axle trailer suspension.
