Trigg bros have stop manufacturing we have some remaing stock

75 MM RING COUPLINGS

General Description

A range of high strength ductile ring couplings ADR rated from 2000 - 6000 Kg in both braked and unbraked versions.

Range

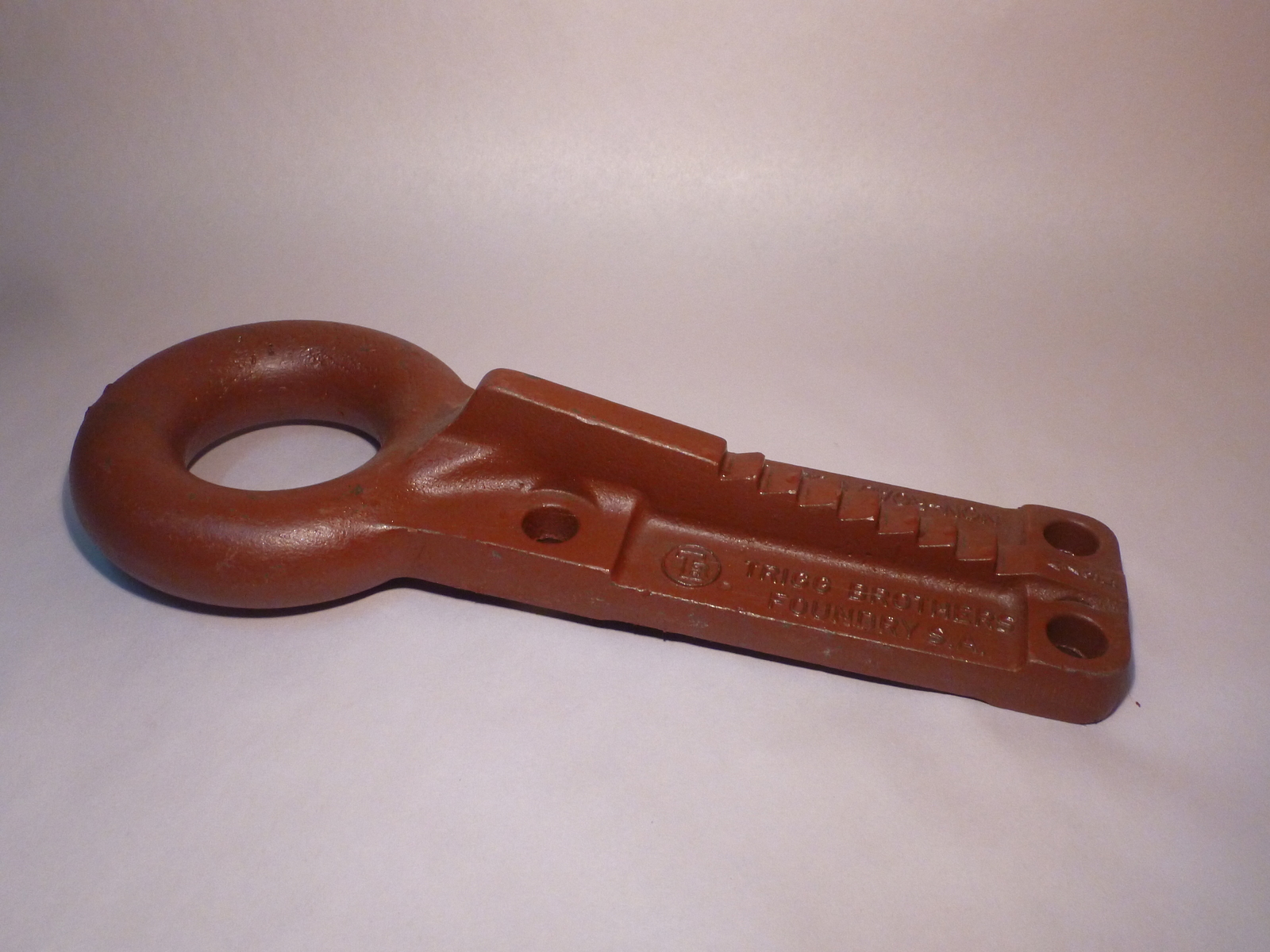

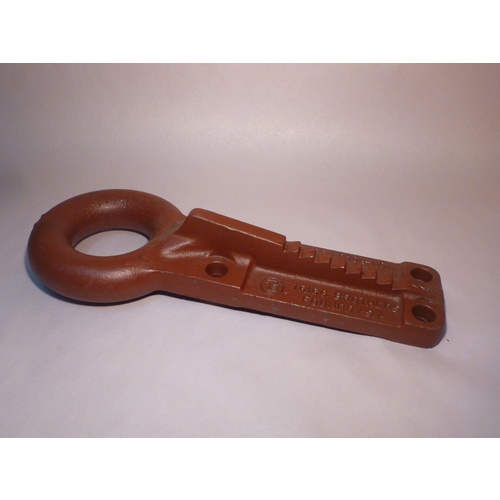

Unbraked Fix Ring - A760, A795 Series

• 40 mm ring section.
• A760 is ADR rated to 3000 Kg.
• A795 is ADR rated to 3500 Kg for on-road and 6000 Kg for off-road (agricultural) applications.

Unbraked Ring - A791 Series

• 40 mm ring section.
• ADR rated to 2250 Kg.
• K10-45 shaft.
• Grease nipples fitted for servicing.
• Can be fitted with A790-HBP (hydraulic) or A790-MBP (mechanical) Limited Swivel Base Plate to restrict rotation of ring and prevent lockup on pintle hook.

Override Ring - A790 Series

• 40 mm ring section.
• ADR rated to 2000 Kg.
• K10-45 shaft.
• Grease nipples fitted for servicing.
• Reversing lockout facility to disable braking.
• Can be fitted with A790-HBP (hydraulic) or A790-MBP (mechanical) Limited Swivel Base Plate to restrict rotation of ring and prevent lockup on pintle hook.

Braking Options

The Override Ring A790 Series can be fitted with any of our braking options, including :

• Hydraulic Braking - A803 Series
• Mechanical Braking - A807 Series and A790-MBP (with limited swivel feature).

See Braking for full details including replacement parts.

Ordering Information And Replacement Parts

Description		Part Number
Couplings
3000KG 75MM FIXED RING COUPLING		A760
3500KG 75MM FIXED RING COUPLING		A795
75MM RING COUPLING		A790
75MM SWIVEL RING		A791
	REVERSING CLIP DRILLED	A802D
	MECHANICAL LEVER DRILLED	A807D
	GN-14PI (1/4" GREASE NIPPLE)	GREASE NIP
	REVERSING CLAMP PIN	KP-02
	TAPERED SPRING -SUITS A802, A900	SPR-06
Limited Swivel Base Plates
HYDRAULIC COUPLING BASE PLATE		A790-HBP
MECHANICAL COUPLING BASE PLATE		A790-MBP
	MECHANICAL LEVER DRILLED	A807D
	MECHANICAL BRACKET -PLATED	A807 P
	MECHANICAL LEVER & RATCHET ASSEMBLY	A807/A809
	A809 RATCHET DRILLED	A809D

Trigg Bros Pty Ltd cannot accept responsibility for product performance should the product be altered or combined with parts and accessories that are outside of the manufacturer's specification.
