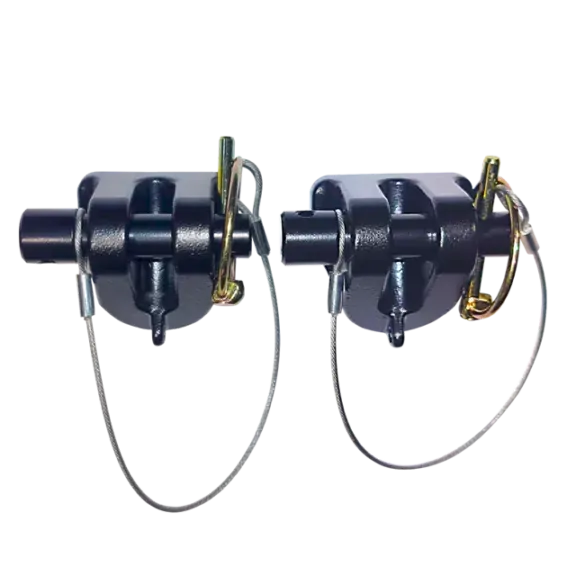

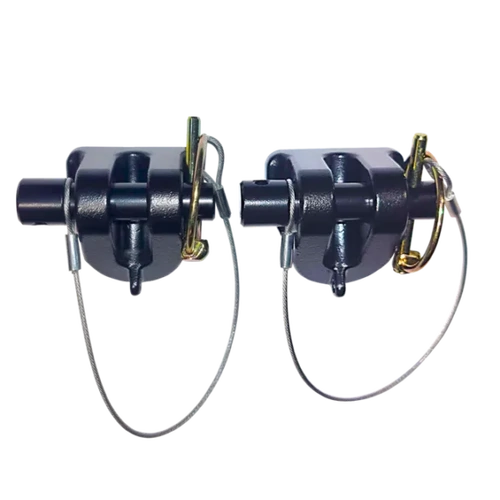

G80 Truck Trailer Safety Chain Holders | 8500kg (8.5t) ATM
At Couplemate™, we understand that safety is a top priority. That’s why we’ve developed the 8500kg G80 Truck Safety Chain Holder, a premium quality product that ensures your trailer is always secure and stable on the road.
This product is especially good for truck owners who need a reliable safety chain holder that meets Australian safety standards.
This product is also suitable for caravans and general-purpose trailer owners who have a DO45 or need to tow 4500kg (4.5t).
Product Specifications
- Materials: K1054, K1040
- Coating: Black ElectroGal
- Capacity: 8500kg (8.5t)
The product is sold as a pair. Holders can be welded on both the drawbar (trailer side) and the tow bar (vehicle side).
CM545 Installation Instructions
Welding plays a crucial role in safety. Incorrect or unprofessional welding causes dangerous situations.
The minimum weld size on all sides of the CM545 must be 5 mm. Its installation orientation must follow the instructions below.
- Drawbar Attachment: Weld safety chain holders directly to the trailer chassis rail as close as possible to the coupling.
- Aluminium Trailers: Weld the chain holder to a plate and bolt it to the trailer with four high-tensile bolts.
(CM549)
SKU | CM549 |
Brand | COUPLEMATE |
Shipping Weight | 1.5000kg |
Shipping Width | 0.110m |
Shipping Height | 0.060m |
Shipping Length | 0.110m |
Shipping Cubic | 0.000726000m3 |
